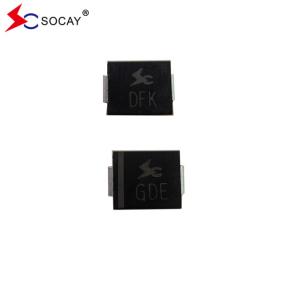

SMCJ33 SMCJ33C Electronic Component Bidirectional Transient Voltage Suppressor SMCJ Series TVS SMCJ33CA Diode DO-214AB
DATASHEET: SMCJ_v2107.1 .pdf
SMCJ Series TVS SMCJ33CA Illustration:
The SMCJ Series TVS SMCJ33CA is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
SMCJ Series TVS SMCJ33CA Features:
u TVS SMCJ33CA is For surface mounted applications in order to optimize board space
u It has Low leakage
u It is a Bidirectional unit
u Glass passivated junction
u TVS SMCJ33CA has Low inductance
u Excellent clamping capability
u 1500W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01%
| TVS Part Number | TVS Marking | TVS Reverse Stand-Off Voltage VRWM (V) | TVS Breakdown Voltage VBR (V) @IT | TVS Test Current IT (mA) | TVS Maximum Clamping Voltage VC @IPP (V) | Maximum Peak Pulse Current IPP (A) | Maximum Reverse Leakage IR @VRWM (μA) | |||
| Uni | Bi | Uni | Bi | MIN | MAX | |||||
| SMCJ30A | SMCJ30CA | GFK | BFK | 30.0 | 33.30 | 36.80 | 1 | 48.4 | 30.99 | 5 |
| SMCJ33A | SMCJ33CA | GFM | BFM | 33.0 | 36.70 | 40.60 | 1 | 53.3 | 28.14 | 5 |
